10. Example Build Process of a Modern Application

“Continuous Integration” is a term for a project that:

  • Detects when someone checks in new code
  • Checks out that code and builds it
  • Runs tests on that build
  • E-mails if it fails
  • Auto-deploys to a test environment if it passes

If we fail tests, we know exactly what build it failed on, and who checked in that code.

10.1. Automated Builds

A common problem with app development is making sure anyone can build the project successfully. It is too easy to only have one person be able to build the project because of some file exists on her computer, but not in source control.

For our project, let’s use a free Continuous-Integration service called AppVeyor:

https://www.appveyor.com/

First, we need to add a file to your program that tells AppVeyor how to build our project. The “in-style” way to do configuration files like this is by using “YAML Ain’t Markup Language” (.yaml)

appveyor.yml
# Auto-pull the branch and label to use as the version
version: "{branch} {build}"

# How detailed do we want the build record to be
build:
  verbosity: detailed

# Command to build the project
build_script:
  - ./gradlew build

# Cache holds files used to speed up later builds so we don't have to
# re-download them.
cache:
  - .gradle

# What JAVA to build with
environment:
  matrix:
    - JAVA_HOME: C:\Program Files (x86)\Java\jdk1.8.0

# What/where is the resulting WAR file
artifacts:
  - path: build/libs/*.war
    name: MyWarFile

You can log in with GitHub. Then add your project.

../../_images/appveyor.png

Once added, the project should build:

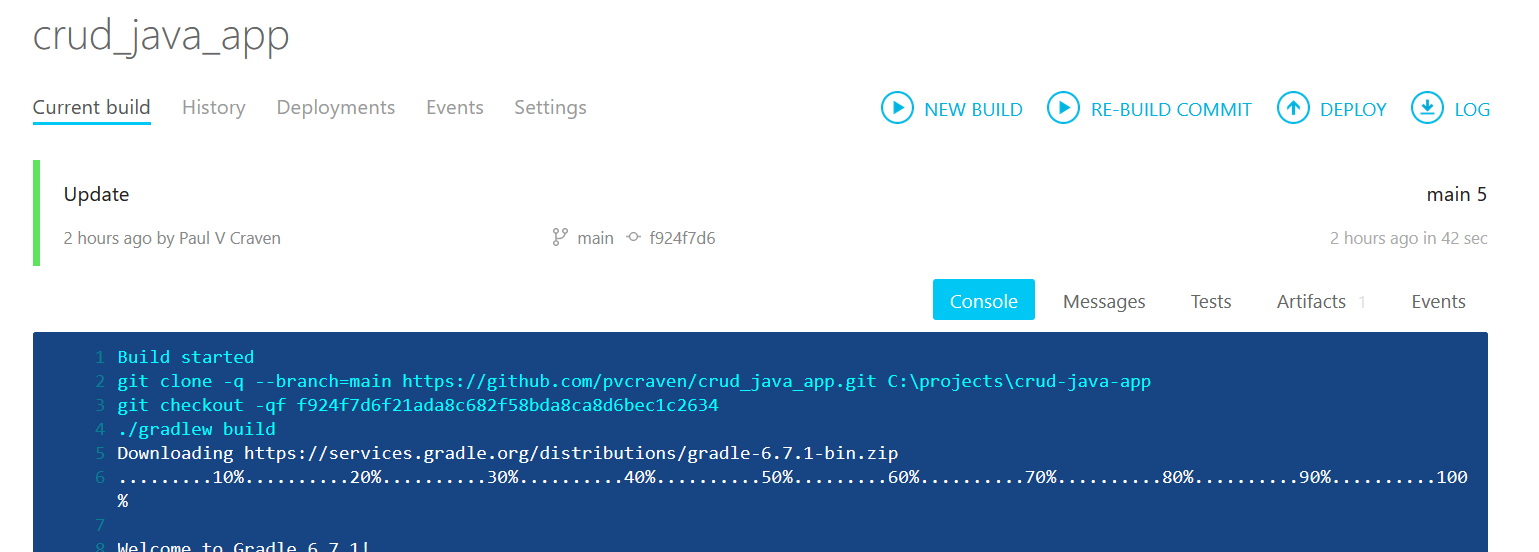

../../_images/appveyor2.png

Successful AppVeyor Build

If successfully built, you can download the WAR file:

../../_images/appveyor3.png

Download war file as ‘artifact’ from build

10.2. Using Environment Variables

Problem is, we can’t use that WAR file because it doesn’t have META-INF/context.xml. No way to make a database connection without that info! How can we securely manage that information so we have a user name, password, and connection stream without checking it in anywhere?

To do that, we can use environment variables. Let’s change our context.xml to use environment variables for sensitive fields. Next, we’ll set the variables both in our local environment, and our Amazon environment.

10.2.1. Step 1 - Update context.xml

Update context.xml to use environment variables instead of hard-coded values for user, password, and JDBC connection string:

Updated context.xml lines
<?xml version="1.0" encoding="UTF-8"?>
<Context>
    <Resource name="jdbc/cis320"
              auth="Container"
              type="javax.sql.DataSource"
              maxTotal="50"
              maxActive="15"
              maxIdle="10"
              maxWaitMillis="-1"
              driverClassName="com.mysql.cj.jdbc.Driver"
              username="${user}"
              password="${password}"
              url="${jdbc}"
              testOnBorrow="true"
              removeAbandoned="true"
              removeAbandonedTimeout="55"
              validationQuery="SELECT 1"
              validationInterval="34000"
              timeBetweenEvictionRunsMillis="34000"
              minEvictableIdleTimeMillis="55000"
              factory="org.apache.tomcat.jdbc.pool.DataSourceFactory"
    />
    <ResourceLink name="jdbc/cis320"
                  global="jdbc/cis320"
                  type="javax.sql.DataSource" />
</Context>

10.2.2. Step 2 - Update your local Tomcat

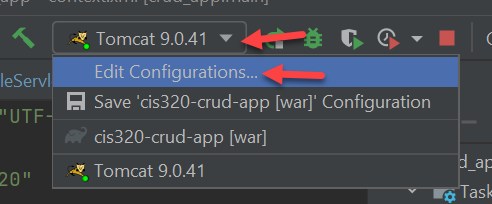

In IntelliJ, click on the ‘down’ arrow next to your Tomcat configuration and select ‘Edit’:

../../_images/tomcat_1.png

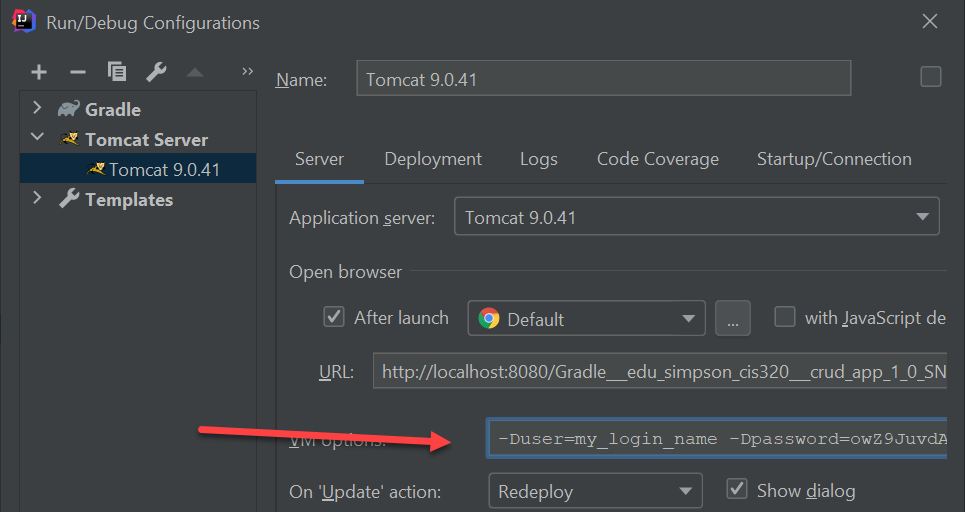

Next, update the “VM Options.”

../../_images/tomcat.png

Java specifies environment variables with the -D option. So it our specification might look like:

-Duser=my_login_name -Dpassword=passwordhere -Djdbc=jdbc:mysql://cis-320-database.cp6n5ccfdx2q.us-west-2.rds.amazonaws.com:3306/cis320

Test, and make sure everything still works. Then remove context.xml from your .gitignore and add it to Git. Push to GitHub, and grab the WAR file from AppVeyor after it builds.

10.2.3. Step 3 - Update Amazon

Environment variables are buried and hard to find.

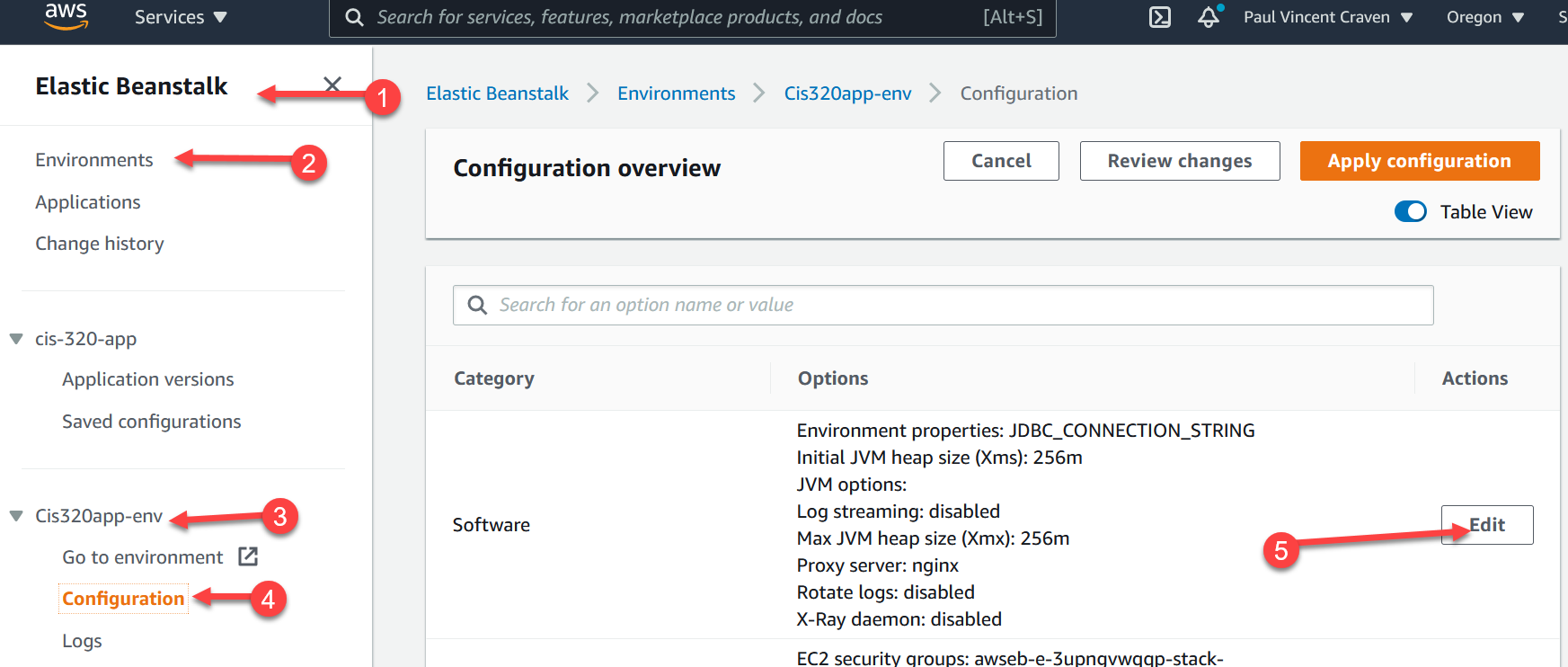

  • Select “Elastic Beanstalk”.
  • Select “Environments”
  • Select your environment
  • Select “Configuration” from the left menu
  • Under “software” select “edit”
../../_images/aws1.png

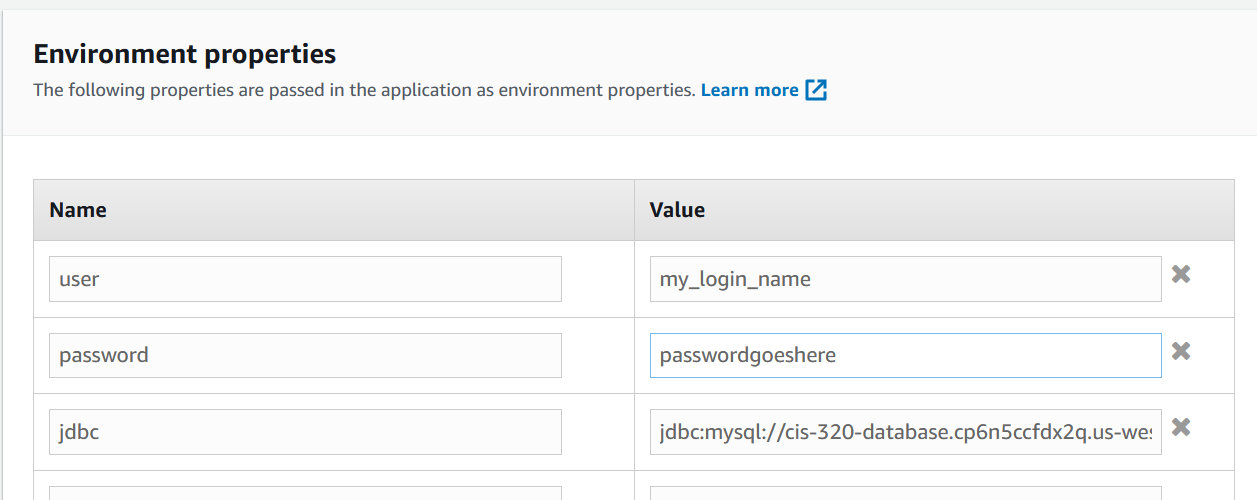

  • Scroll way down to “Environment properties”
  • Plug in your values
../../_images/aws2.png

10.3. Gradlew

If your gradlew.bat file is empty like mine was, here’s what’s supposed to be in it.

gradlew.bat
@rem
@rem Copyright 2015 the original author or authors.
@rem
@rem Licensed under the Apache License, Version 2.0 (the "License");
@rem you may not use this file except in compliance with the License.
@rem You may obtain a copy of the License at
@rem
@rem      https://www.apache.org/licenses/LICENSE-2.0
@rem
@rem Unless required by applicable law or agreed to in writing, software
@rem distributed under the License is distributed on an "AS IS" BASIS,
@rem WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
@rem See the License for the specific language governing permissions and
@rem limitations under the License.
@rem

@if "%DEBUG%" == "" @echo off
@rem ##########################################################################
@rem
@rem  Gradle startup script for Windows
@rem
@rem ##########################################################################

@rem Set local scope for the variables with windows NT shell
if "%OS%"=="Windows_NT" setlocal

set DIRNAME=%~dp0
if "%DIRNAME%" == "" set DIRNAME=.
set APP_BASE_NAME=%~n0
set APP_HOME=%DIRNAME%

@rem Resolve any "." and ".." in APP_HOME to make it shorter.
for %%i in ("%APP_HOME%") do set APP_HOME=%%~fi

@rem Add default JVM options here. You can also use JAVA_OPTS and GRADLE_OPTS to pass JVM options to this script.
set DEFAULT_JVM_OPTS="-Xmx64m" "-Xms64m"

@rem Find java.exe
if defined JAVA_HOME goto findJavaFromJavaHome

set JAVA_EXE=java.exe
%JAVA_EXE% -version >NUL 2>&1
if "%ERRORLEVEL%" == "0" goto execute

echo.
echo ERROR: JAVA_HOME is not set and no 'java' command could be found in your PATH.
echo.
echo Please set the JAVA_HOME variable in your environment to match the
echo location of your Java installation.

goto fail

:findJavaFromJavaHome
set JAVA_HOME=%JAVA_HOME:"=%
set JAVA_EXE=%JAVA_HOME%/bin/java.exe

if exist "%JAVA_EXE%" goto execute

echo.
echo ERROR: JAVA_HOME is set to an invalid directory: %JAVA_HOME%
echo.
echo Please set the JAVA_HOME variable in your environment to match the
echo location of your Java installation.

goto fail

:execute
@rem Setup the command line

set CLASSPATH=%APP_HOME%\gradle\wrapper\gradle-wrapper.jar


@rem Execute Gradle
"%JAVA_EXE%" %DEFAULT_JVM_OPTS% %JAVA_OPTS% %GRADLE_OPTS% "-Dorg.gradle.appname=%APP_BASE_NAME%" -classpath "%CLASSPATH%" org.gradle.wrapper.GradleWrapperMain %*

:end
@rem End local scope for the variables with windows NT shell
if "%ERRORLEVEL%"=="0" goto mainEnd

:fail
rem Set variable GRADLE_EXIT_CONSOLE if you need the _script_ return code instead of
rem the _cmd.exe /c_ return code!
if  not "" == "%GRADLE_EXIT_CONSOLE%" exit 1
exit /b 1

:mainEnd
if "%OS%"=="Windows_NT" endlocal

:omega
