3. Local Java Servlet Development Environment Setup

Our goal here is to get a development environment set up to create web applications.

3.1. Step 1: Install Java

First, we need to download and install Java. The Java distributions are confusing. There are:

  • Java Software Development Kits (SDK) that allow you to write in Java and run Java programs. This is called “Java Standard Edition (SE)”. We want this.
  • Java Runtime Environments (JRE) Lets you run Java programs, but not write them. We don’t want this.

Next, there are:

  • Commercially supported versions of Java. While you can down them for free, you legally have to purchase a license from Oracle for their use. You can get support contracts from Oracle, and they’ll support the product. We are broke students, we don’t want this.
  • Open-source Java. Built off Oracle’s Java, this is free open-source Java. We want this.

Java comes in a lot of versions. Right now, I can easily download versions 7 through 16. Each version might have changes that require you to update your code. For example, version 8 might change how a function works compared to version 7. Within each of those versions, there are bug-fix releases. So version 7.0.2 should run all the same code 7.0.1 does, but with less bugs.

Version 16 is currently (2021) in pre-release, so we are going to use version 15. Download the open source version of it from here:

https://jdk.java.net/15/

Create a directory called CIS320 (no spaces) where we’ll put our class files. Then unzip Java, and you should have a directory like jdk-15.0.1 or similar.

3.2. Step 2: Install Tomcat

Next, we need a Java program that will run as an application server. We’ll plug our own Java code into this application server.

There are a lot of Java application servers out there. We’ll be using a free and open source one called Tomcat. Download it from here:

https://tomcat.apache.org/download-90.cgi

Unzip it, and place it in the CIS320 directory we created earlier. You should now have two directories, one for Tomcat, and one for the JDK.

3.3. Step 3: Install IntelliJ

Next, we need an IDE. We’ll use IntelliJ. Download and install IntelliJ from JetBrains from here:

https://www.jetbrains.com/idea/download/

I suggest downloading the ‘ultimate’ version, and get a student license from here:

https://www.jetbrains.com/community/education/#students

Note

If you skip getting the student license, in 30 days you won’t be able to work and more.

The default tools are ok when installing.

3.4. Step 4: Make a Java Servlet Project

Now you have Java, and an Integrated Development Environment (IDE) installed. Let’s use the IDE to set up our first web project. Select these options. If you do not have these options, you might have the free community edition. You need to get the other edition.

You’ll need to point to the project SDK (the Java directory) and to the Application server (Tomcat directory).

../../_images/new_project.png

Select the framework:

../../_images/new_project_2.png

Next, give the project a name. I chose FirstApplication. Put it into the CIS320 directory, and a subdirectory with the same name. Also, we’ll select the Java package. I used edu.simpson.craven, I suggest the same but with your name.

../../_images/new_project_name.png

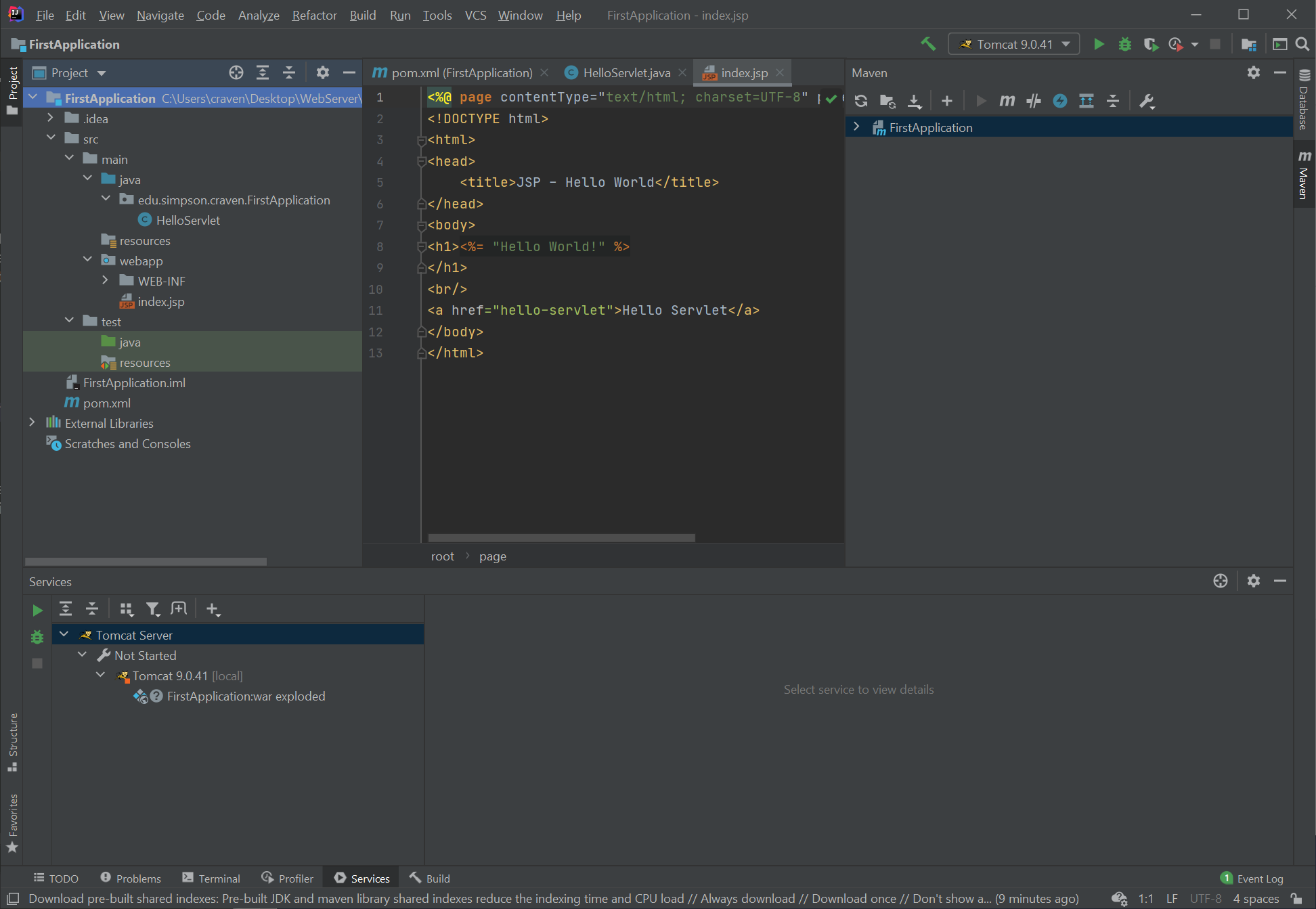

This might open to a confusingly blank window. Hit Alt-1 to open the project view and explore the project template. You can hit Alt-1 again to hide the window. Useful when you want more screen real-estate.

../../_images/project_view.png

Great, we have a project. How do we see the result? We need to set up Tomcat to run when we hit the ‘run’ button. Go ahead and select run:

../../_images/run1.png

It can take a while to build and set everything up. When the app runs, it should run and bring up a “Hello World!” page.

If you get a ‘port is already in use’ error, you might need to restart your computer before it works.
