Assignment 7 - AWS Deployment¶
Goal: Deploy your project onto your own server.
By this time, you should have:
- Understood what a web server does: Web Servers
- Set up an AWS server via this tutorial: Amazon Web Services EC2 Tutorial
- Spent some time getting used to the command line: Command Line Tutorial
Now, we are going to get a web server working and on-line via the tutorial below.
You will turn in:
- A link to your web site. It should be on an AWS server and probably starts
with
http://ec2-
Attention
This assignment is needed as a base for other assignments. Don’t take a zero on this assignment.
Sometimes this assignment goes smoothly, and sometimes it doesn’t. Plan to spend time working with the professor outside of class to get the deployment working. Usually we can get this working from scratch in about twenty minutes. Less, if you have part of it done. But you have to make the effort to do this.
Get Webserver Working¶
First, we want to get all the software updates available for our computer before we start installing anything new.
The program that does these updates is called apt-get
. Installing updates is a two step process:
- Check what updates exist:
apt-get update
- Install the updates:
apt-get upgrade
…but if you try that out, it doesn’t work. You don’t have permission to install the updates. Have you ever tried to install software on Windows or a Mac and it asks for permission? This is to keep malicious software (or users) from installing programs on your computer we don’t want. We have to give it permission to do so.
We do this with the “substitute user do” command. Basically, we are saying run this command as administrator:
# Check for updates
sudo apt-get update
# Install updates
sudo apt-get upgrade
Next, let’s install a webserver. Specifically, Apache 2.
You can also do this using apt-get
from the command-line.
In fact, this is one of the things I love about the command line. If you need 12 programs installed for
your server, you can just list out all 12 on this command line and it will install them for you. Super-easy.
# Install web server
sudo apt-get install apache2
Now, try accessing web server. Paste your server’s address in the web browser. It should look something like:
http://ec2-52-39-56-197.us-west-2.compute.amazonaws.com/
…but not exactly that. Also, the ‘quick link’ on AWS will try to link https
when we
only have http
working.
Edit Web Page¶
Now, let’s change the web pages. First, go to the directory that has the html files and list them:
cd /
ls
cd var
ls
cd www
ls
cd html
ls
You could combine those cd
commands into one:
cd /var/www/html
Next, let’s try editing the index page with nano:
nano index.html

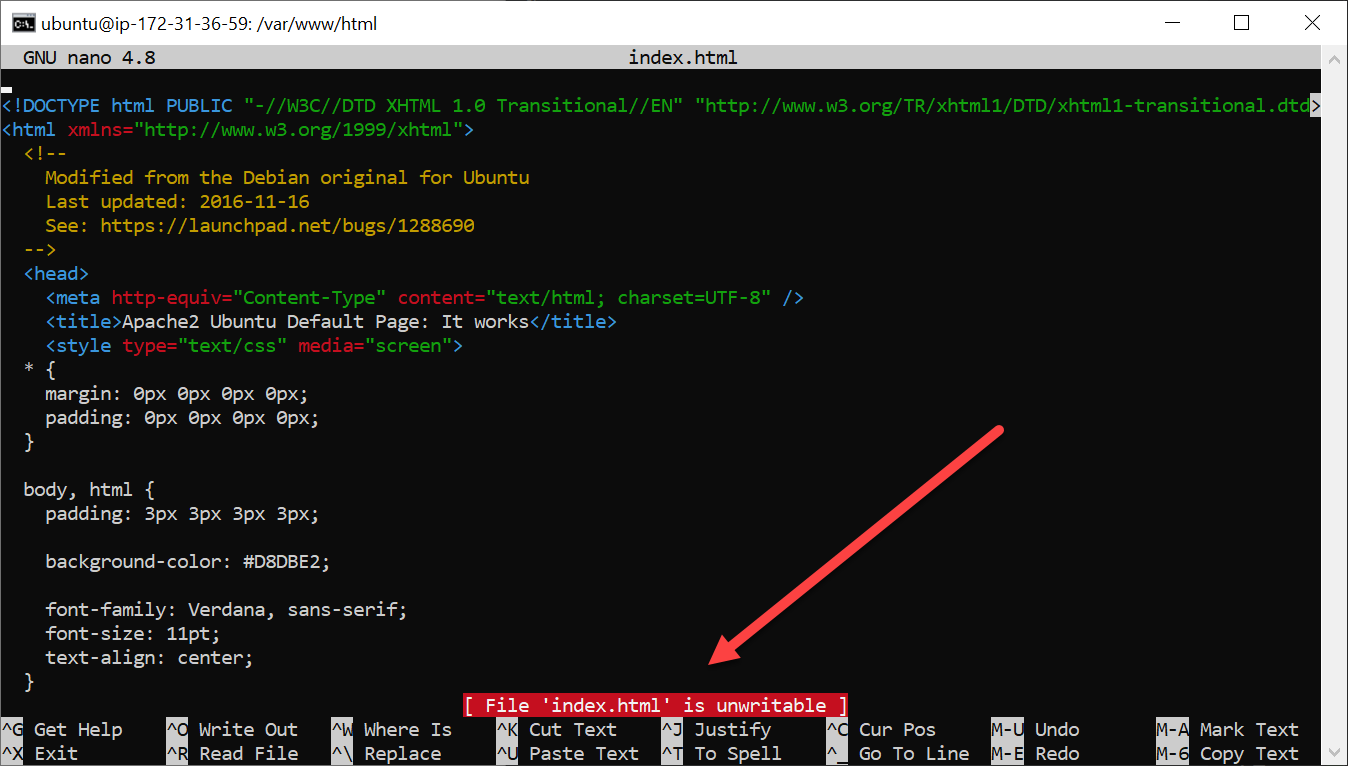

Notice it says the file is ‘unwritable’. You have no permission.
So use sudo
to do command as an admin:
sudo nano index.html
- Lots of lines there. You can delete a line with ctrl-k
- Try typing something
- Hit ^o - Enter to save
- Create a base HTML page with your name
1 2 3 4 5 6 7 8 9 10 11 12 | <!DOCTYPE html> <html lang="en"> <head> <meta charset="utf-8"> <title>First Web Server</title> </head> <body> <h1>Sample HTML document.</h1> <p>This is a sample document by (insert name here).</p> </body> </html> |
- Save and see if you can see the results in your browser.
This URL web page is one part of your assignment.
Upload and Download Files¶
- Type this on your computer (not your AWS computer) to download the index file:
scp -i mykey.pen ubuntu@ec2-52-39-56-197.us-west-2.compute.amazonaws.com:/var/www/html/index.html .
You can try (but not succeed) to upload the file from your computer to your AWS server:
scp -i mykey.pem index.html ubuntu@ec2-52-39-56-197.us-west-2.compute.amazonaws.com:/var/www/html/
Programs like MobaXTerm and FileZilla make file upload and download as easy as drag-and-drop.
Fix File Permissions¶
See who owns the files:
ls -la
Change to file owner from root
to ubuntu
which is the user we log in as:
sudo chown ubuntu:ubuntu index.html
You can upload the file, but not add new ones. Because the directory is owned by root still. To fix:
cd ..
sudo chown ubuntu:ubuntu root
Download from Git¶
We could download our files direct from GIT. The wget
command downloads
a web page as a file. GIT provides a direct download-link to a zip of
the project.
wget https://github.com/pvcraven/hauntings/archive/refs/heads/main.zip
Then unzip the files. You’ll likely need to install the unzip
command.
unzip main.zip
Then you can go to your website and add in the ‘hauntings-main/public_html’ directory.
Get Application Server Working¶
- Talk about ‘application servers’
- Talk about php
Edit the file, add a link to test.php
Create a test.php file:
<h1>Web Page for (my name here)</h1>
<p>Start</p>
<p>
<?php
echo "Today is ";
echo date("Y/m/d");
echo ". ";
echo "The time is ";
echo date("h:i:sa");
?>
<p>End</p>
Run in browser. Use ‘view source’
sudo apt-get install php
- Make sure everything works.
- Make sure your name is on the index.
- Copy the URL to your main page.
- Turn in for assignment 7
