7.2. XAMPP Web Server Setup

We are going to use a software program called “XAMPP”. XAMPP is a bundle of free software that contains the Apache Web Server, and some other applications. The name comes from:

  • X - Cross platform (Works on Windows, Mac and Linux)
  • A - Apache (Web server)
  • M - MariaDB (Database, they used to use MySQL)
  • P - PHP (Back-end server language)
  • P - Perl (Back-end server language)

7.2.1. Installing XAMPP

Download XAMPP from here:

https://www.apachefriends.org/index.html

It can take a while to download. I often got downloads that failed silently, leaving me with a program that didn’t run. You should download about 110 Megabytes.

Run the installer. You might get the screen below. If so hit “More info.”

../../../_images/protected_pc_1.png

Once you click that, you can run it anyway.

../../../_images/protected_pc_2.png

Next, you may get the following warning:

../../../_images/UAC.png

By default, XAMPP will not try to install in the “Program Files” directory. Don’t force it to, or else you’ll end up with all kinds of problems that are hard to debug.

Next, the default list of software is OK. Just hit “Next >”

../../../_images/setup_1.png

Keep the default directory. If you want to change it, don’t put in in “Program Files” or “Program Files (x86)”

../../../_images/setup_2.png

We don’t need to learn more about Bitnami right now. Uncheck and hit “Next >”

../../../_images/setup_3.png

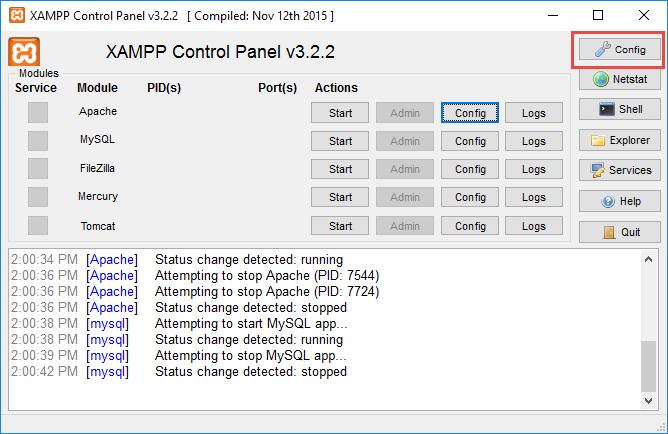

When you start XAMPP, you’ll get a control panel like this. Hit “Config”

../../../_images/main_panel.png

7.2.2. Changing the default text editor

Select your favorite text editor. In the image below, I’ve selected Sublime. Then have Apache and MySQL auto-start. This will save you clicks later. Then click “Save”.

../../../_images/configure_1.png

7.2.3. Changing the default directory

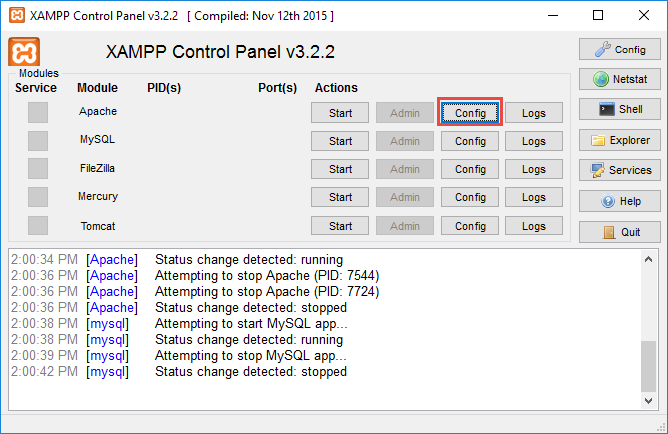

Next, we need to tell Apache what directory all our web files are saved in. Back at the control panel, hit the “Config” button for Apache.

../../../_images/config_apache.png

There are two spots where you need to change the directory. Find where you save your web projects, and paste that folder path into httpd.conf.

Note: You are changing this for everyone on the computer. If you keep the same computer, you can save yourself having to reset this path.

../../../_images/httpd.conf.png

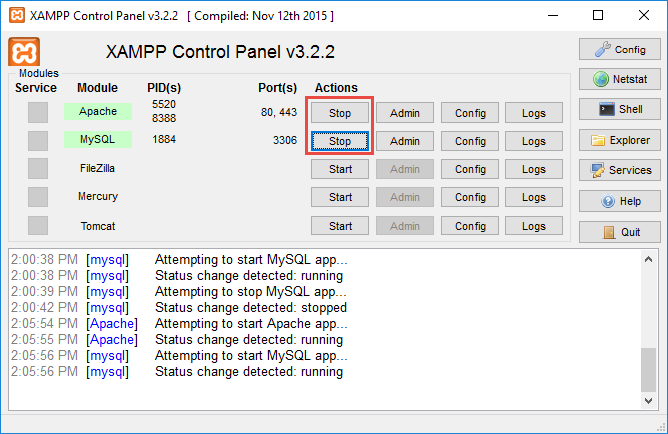

Go ahead and start Apache and MySQL:

../../../_images/control_panel_started.png

Excellent! We have a web server going.

7.2.4. Quick Primer on Web Addresses

Computers on the Internet have unique “IP addresses” that identify who they are. The addresses are in the form of four numbers, each from 0 to 255. For example, simpson.edu is “198.206.243.15”.

But no reasonable person can remember that. So we have “domain names.” There is a “Domain Name Service” that maps names like simpson.edu to an IP address.

(There is a lot more to this, we’ll cover it soon.)

But we don’t have a domain name, and I don’t know what my address is. How can I quickly go to my web server?

There is a special domain name called “localhost”. It is the English equivalent to the pronoun “me” or “I”.

In your web browser, type “localhost”, and you should be able to browse through your web projects:

../../../_images/web_page.png

On a “production” setup, you would not lead people to this page with all your projects. You would instead direct users straight to the web site.

With some more work setting up servers, you can have one server manage multiple web sites. Such as I could have a web server that manages both “http://cars-for-sale.example” and “http://service-department.example”. Same web server, but it just pulls files from different directories depending on what site the user asks for.

What if you want the person next to you to see your web pages? You can do that. First we need to find the “IP address” of your computer.

Do the following:

  • Type Window-R (Hit the Window key on the keyboard like a shift, and then hit “R” for “Run”.)
  • Type in cmd which is the short name of the “Command Prompt” program.
  • At the command prompt, type ipconfig
../../../_images/ipconfig.png

There’s your web address. Now have another person type in the web address on their browser bar, and they should see your web server.

Note

Outside of your local network, you probably can’t have anyone see your new web server. Or even your computer. This is because the firewall is using something called “Network Address Translation.” All traffic goes to the firewall, and the firewall does not route that traffic to your computer by default.
